HEWCO HC-200 (DUNNAGE-MAX) GRADE PRINTERS
High-speed, full-length grade printing at the out-feed of your planer, notcher or other moulding machine.
Can be mounted to grade print linear or transverse traveling pieces. Pressurized inking system delivers continuous ink for consistent grade printing. No changing of pre-charged inking rolls. Low operating and maintenance cost.
HEWCO HC-200-L (LUMBER-MAX) GRADE PRINTERS
High-speed, full-face grade printing, top or bottom mounted before your stacker. Prints a single grade continuously.
Pressurized inking system delivers continuous ink for consistent grade printing. No changing of pre-charged inking rolls. Low operating and maintenance cost.
When you’re ready to place an order or if you require additional information on Grade Printers, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com
HEWCO CUSTOM CONTACT MARKING GRADE PRINTERS
Up to 28 position grade printer, free rotating or indexing, solid inking or liquid inking system, PLC controlled, adjustable base, line speeds up to 600ft per minute, continuous grade stamp ring dies or Velcro backed dies.
When you’re ready to place an order or if you require additional information on Hewco Grade Printers, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com
HEWCO NON SELF-INKING HAND ROLLERS
A hardwood drum and handle, mounted to an aluminum frame with aluminum shaft and end caps. Available with a standard 2.5″ (63.5mm) diameter drum in widths of 3 – 10″ (76 – 254mm) or standard 3.5″ (89mm) diameter drum in widths of 1-1/2 – 4″ (38 – 101.5mm).
A deep profile custom vulcanized rubber die with your specific information is applied to the drum providing for a continual roll stamp. Rubber dies are available in different rubber compounds and densities.
Use with one of our industrial stamp pads.
When you’re ready to place an order or if you require additional information on Hewco Non Self-Inking Hand Rollers, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com

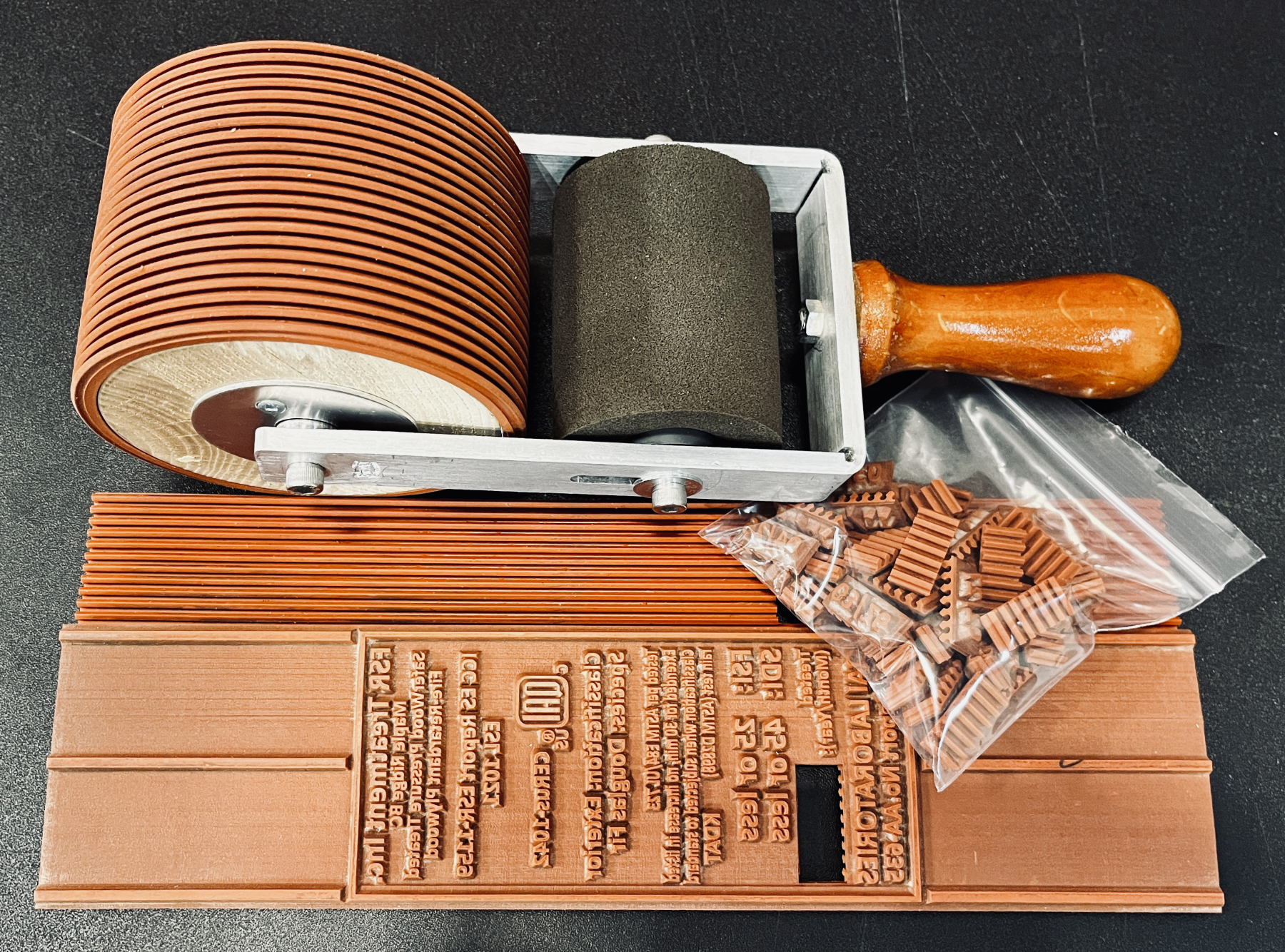

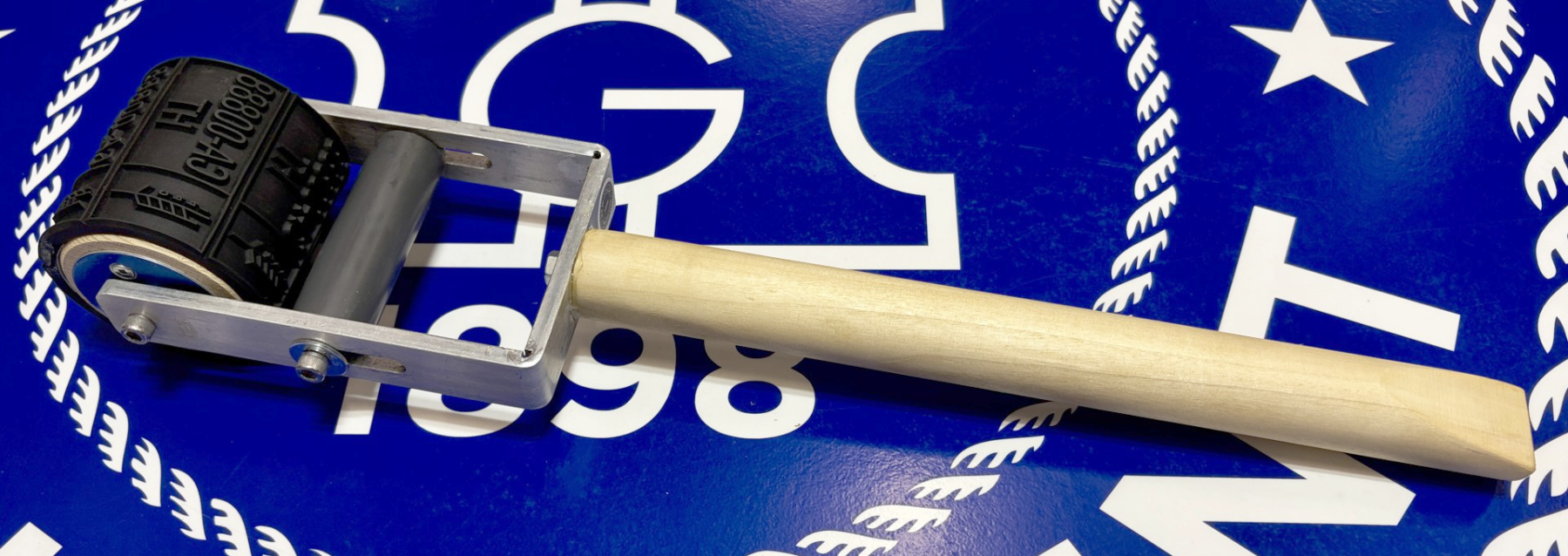

HEWCO SELF-INKING HAND ROLLERS
A hardwood drum and handle, mounted to an aluminum frame with aluminum shaft, aluminum ink roll shaft with polyethelene sleeve and aluminum end caps. Available with a standard 2.5″ (63.5mm) diameter drum in widths of 3 – 8″ (76 – 203mm) or standard 3.5″ (89mm) diameter drum in widths of 1-1/2 – 4″ (38 – 101.5mm).
A deep profile custom vulcanized rubber die with your specific information is applied to the drum providing for a continual roll stamp. Rubber dies are available in different rubber compounds and densities.
Use with one of our dry or pre-charged inking rolls.
When you’re ready to place an order or if you require additional information on Hewco Self-Inking Hand Rollers, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com
PORELON HP INK ROLLS
Porelon HP Ink Rolls are available in 4″ O.D. x 3″ I.D. (by your specific length) and 2.5″ O.D. x 1″ I.D. (by your specific length) in all colours. These proprietary high performance oil-based, ink-impregnated gel rolls are considered to be the standard of performance for ink rolls. Custom sizes and special product types such as quick dry are also available by special order. Our Porelon HP ink rolls will fit Globe Burelbach, Claussen All-Mark, Irvington, Timberstar as well as other makes of equipment.
When you’re ready to place an order or if you require additional information on Porelon HP Ink Rolls, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com
HEWCO HP (ROLL-MAX) INK ROLLS
Hewco HP (Roll-Max) Ink Rolls are available in 4″ O.D. x 3″ I.D. (by your specific length) in black, red, green and blue. The ink formulation and performance of these ink rolls are APA-Certified. Quality Control Managers at mills at several locations throughout North America have extensively tested these new ink rolls for us and have determined that these ink rolls perform as well as or better than Claussen All-Mark Brand High Performance Rolls. It has also been determined that these new ink rolls can achieve an approximate 20% longer life and are (depending on the quantity ordered) on average 20% less expensive then any other ink roll. Our Hewco HP (Roll-Max) ink rolls will fit Globe Burelbach, Claussen All-Mark, Irvington, Timberstar as well as other makes of equipment.
When you’re ready to place an order or if you require additional information on Hewco HP (Roll-Max) Ink Rolls, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com
DRY INK ROLLS
High Performance Neoprene and Latex rolls to fit any hand held or machinery application you may have for transferring ink for a contact marking device.
Neoprene:
4″ diameter to fit a 2-1/8″ shaft in widths of .75″, 1″, 2″ or 3″
2.5″ diameter to fit a 1″ shaft in a width of 3″
Multiples can be placed together to create larger width applications. Custom sizes are also available.
Latex:
4″ diameter to fit a 2-1/4″ shaft in a width of 1″
Multiples can be placed together to create larger width applications. Custom sizes are also available.
When you’re ready to place an order or if you require additional information on Dry Ink Rolls, contact our Forestry & Industrial Marking representative, Jeffery Mahe directly at 604-727-0707, in the office at 604-294-6288 or by email to jmahe@geohewitt.com
